WDA Drilling Rigs
WDA operates a fleet of purpose built surface drill rigs capable of reaching depths of up to 1200 meters. The rigs are lightweight, modular and easily maneuverable, with wheel base, rubber tracked and steel tracked models suitable for the most challenging locations. Rigs and support equipment have undergone extensive safety and production focused overhauls in order to suit drilling requirements in almost any terrain to provide the best sampling service possible. Drilling can be completed in areas with little to no road access by helicopter lift deployment and muddy, boggy terrain and salt lakes with morookas, pontoons and all terrain vehicles. We continue to invest in our rig fleet, enhancing the quality and versatility to ensure we meet our client’s needs.

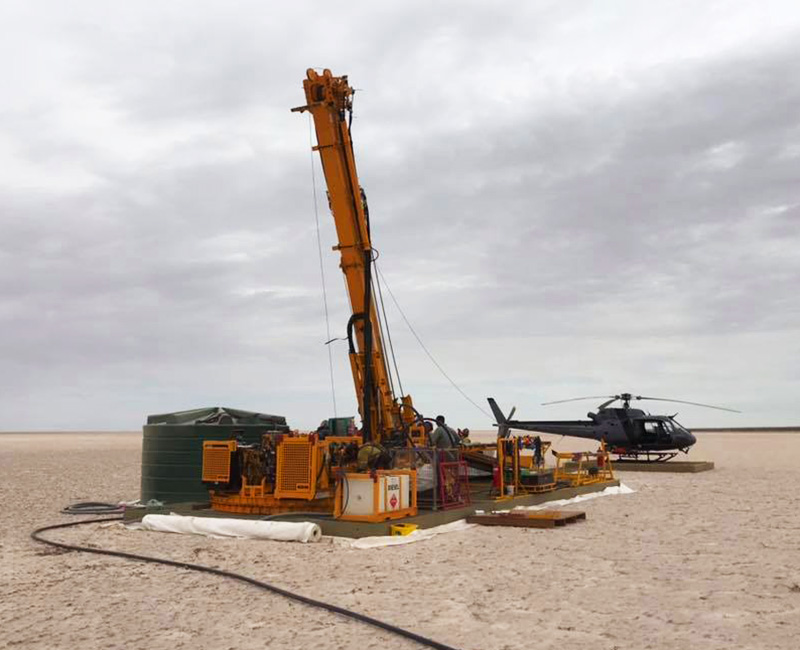

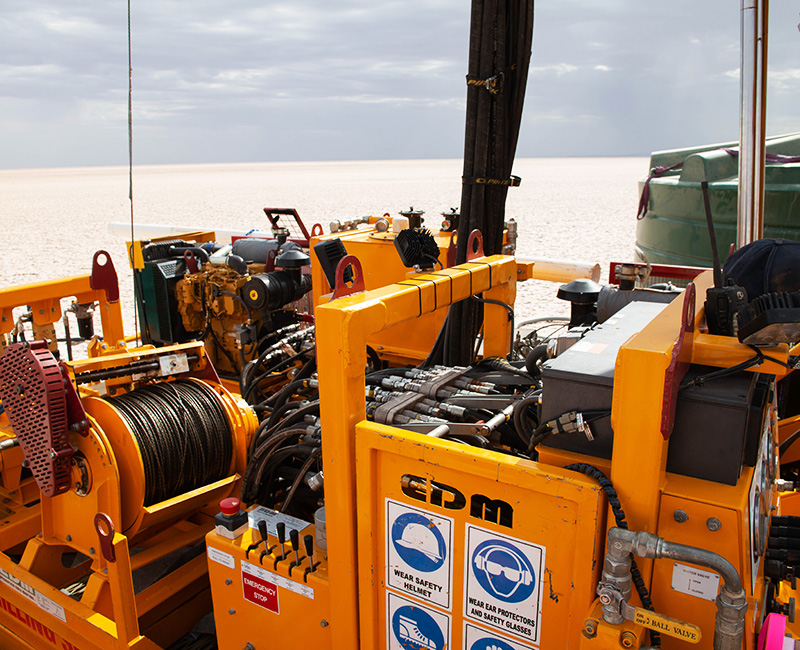

Exploration Drill Masters EDM1500HP
The EDM1500HP is a high capacity diamond drill rig powered by two CAT C4.4 engines giving this rig the power and ability to easily drill up to a 1500m N+ hole. Built with safety in mind the rig comes standard with many features including; rod spinner, rod spin guard with hydraulic cut‐out to stop rotation the moment the spin guard is opened, wireline spooler and both main and wireline winch over rides to prevent rods or the overshot accidentally being pulled through the drum. The EDM1500HP has a steel track base but can also be easily disassembled and moved by helicopter to complete drilling in remote and difficult locations.
Download the Datasheet

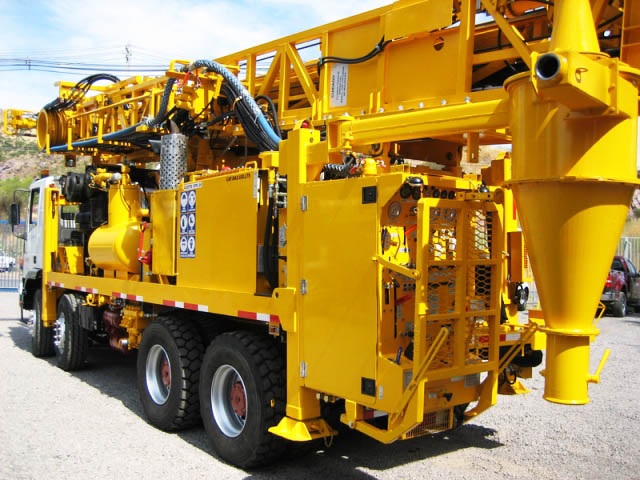

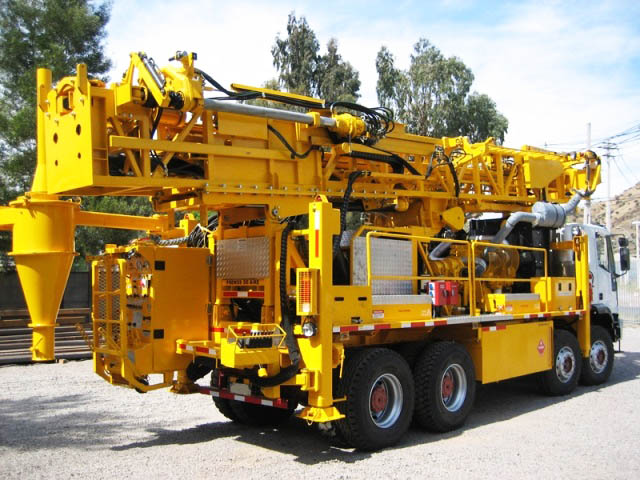

UDR1000 Multipurpose Drill Rig
The UDR1000 is a all hydraulic multipurpose drill rig capable of both reverse circulation and diamond core drilling. The UDR1000 is fitted with an automatic rod handler, fire suppression system, has an onboard Sullair compressor and is mounted on a MAN 8X8 truck.
Download the Datasheet

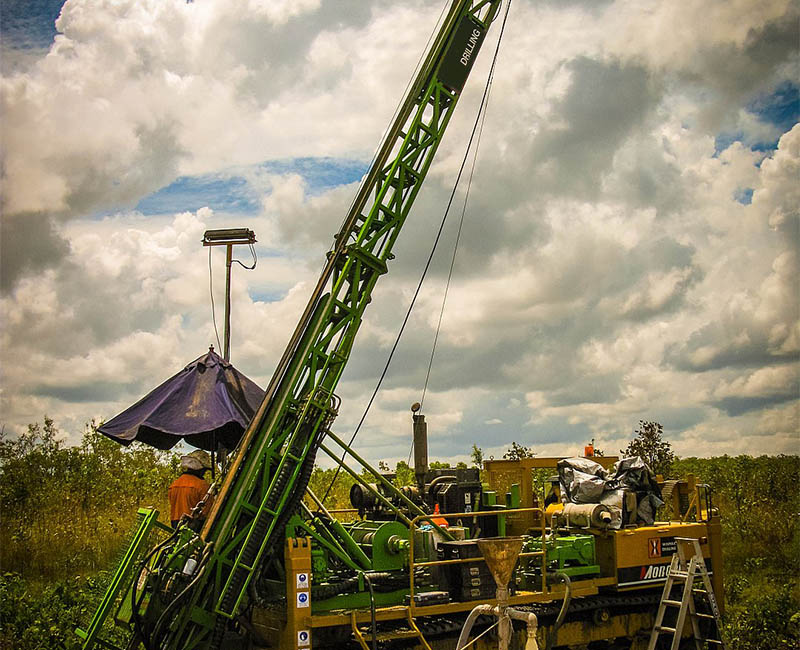

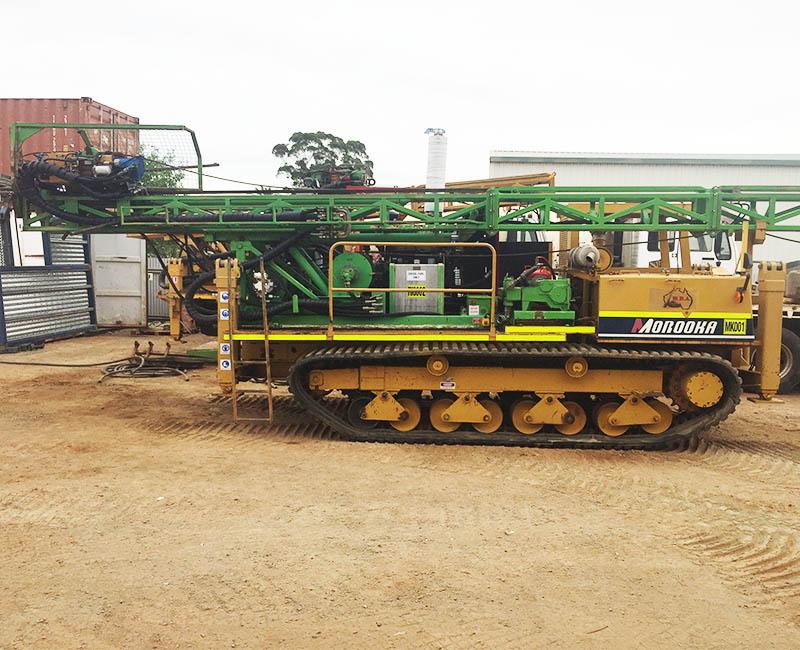

Alton HD900
With numerous Alton rigs in the fleet there is an option suitable for any terrain and location. These rigs are compact in design, lightweight, modular and easily maneuverable, with wheel base, rubber tracked and steel tracked models suitable for even the most challenging locations. Capable of coring up to 475m PQ, 800m HQ and 1200m NQ from 45 to 90 degrees.
Download the Datasheet

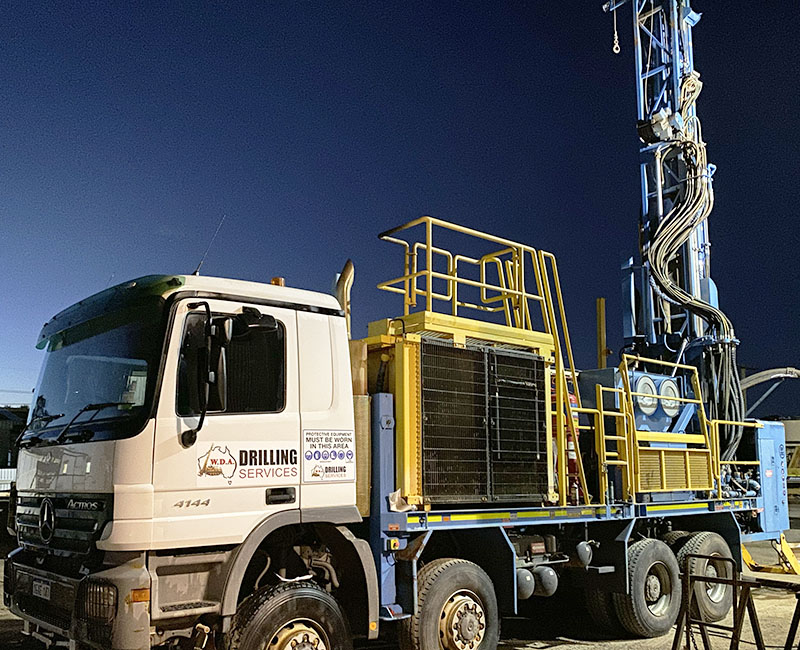

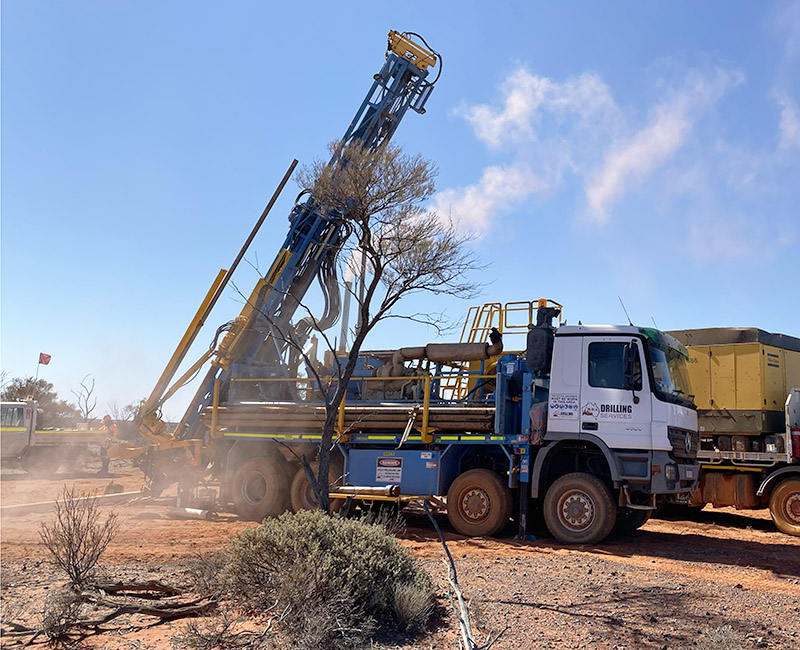

Hydco 70 RC
The Hydco 70 is a reverse circulation drill rig capable of 250m holes. Fitted with an automatic rod handler, onboard hydraulic slewing/rotating cyclone sampling system complete with cone splitter and duplicate splits as standard, fire suppression system, and onboard 350/900 cfm compressor, dual breakout system all mounted on a Mercedes 8X8 truck. A MAN 8X8 Auxiliary Air truck with Elgi compressor and Hydco booster supports the rig when conditions require.
WDA Drilling are proud to use Alton Rigs
